LD 8 Air Cargo Containers

A high demand Air Cargo operation requires the highest of quality while providing the necessary features to operate a leading world class facility to provide express shipping. The LD 8 Air Cargo Container by Granger Aerospace offers not only innovative, leading features, lighter tare weights, while maintaining industry leading durability that is matched by no other ULD Container on the market. Granger's single piece polymer shell not only offers a tremendous savings in maintenance it also aides in operations efficiencies as it makes easy for identification in busy logistics terminals. The single piece polymer shell is available in custom colors to match your corporate identity or to be color coded in your operations hubs. All Granger Aerospace LD 8 containers are built under Granger's highly lauded TSO C90d authoriaztion. Read below to learn more of how Granger Aerospace's containers can take your operations to the next level!

LD 8 DQF Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.

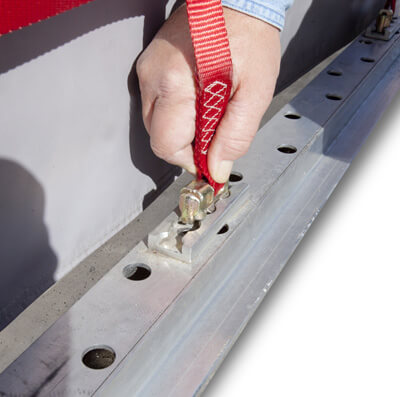

Granger Aerospace LD 8 DQF Air Cargo Container



LD 8 DQF Technical Specifications

Technical Specifications
TSO		N/A
IATA		LD-8/DQF
Spec.		AS 1677
Granger Aerospace P/N		GA2-0108-2
Base size	2438 mm x 1534 mm	96.0 in x 60.4 in
Height	1626 mm	64 in
Roof length	3175 mm	125.0 in
Max. gross weight	2450 kg	5400 lb
Internal volume	6.9 cu m	244 cu ft
External volume	7.5 cu m	265 cu ft
Door opening	2254 mm x 1462 mm	88.75 in. x 57.56 in
Tare weight from	116.5 kg	257 lb

LD 8 DQF Dimensional Drawings

Click below to download LD 8 AKE Dimensional PDF

LD 8 DQF Features:

Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.

The LD-8 Body is weld-able

The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.

Granger Aerospace Products cargo containers are robust.

No aluminum body panels to patch.

No aluminum body frames to replace.

Lighter weight, less down time and lower repair costs equals lower cost of ownership.

Enhanced Threshold.

Fewer fasteners to replace.

Unique design allows for faster repairs.

Less spare parts to keep in stock.

Granger Aerospace Products offers alternative solutions for your ULD needs.

It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.

It’s our goal to offer more choices to our customers

Through or focus on technology and research, we are continually making improvements to our design.

Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 8 Air Cargo Container Links

• LD 8 Air Cargo Conrtainers
• Granger Aerospace LD 8 Air Cargo Containers
• LD 8 Air Cargo Containers
• Rotationally Molded LD 8 Air Cargo Containers

LD 8 DQF / DQN Information

Click below to download LD 8 AKE Technical PDF



LD 8 DQN Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.

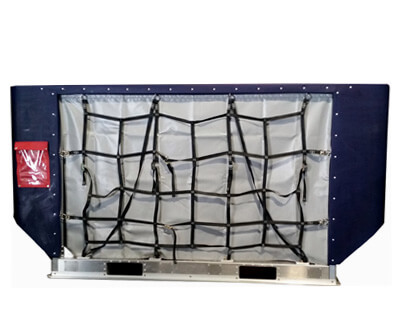

Granger Aerospace LD 8 DQN Air Cargo Container

LD 8 DQN Technical Specifications

Technical Specifications
IATA		C90d
SAE AS 36100 class		LD-2/DPN
Granger Aerospace P/N		NAS 3610 (2K2C)
Base size	1534 x 2438 mm	79.0 in x 60.4 in
Height	1625 mm	64.0 in
Roof length	2438 mm	79.0 in
Max. gross weight	2449 kg	3500 lb
Internal volume	3.5 cu m	125 cu ft
External volume	4.7 cu m	166 cu ft
Door opening	2298 x 1532 mm	53.13 in x 57.75 in
Tare weight from	118.8 kg	262 lbs.

LD 8 DQN Dimensional Drawings

Click below to download LD 8 DQN Dimensional PDF

LD 8 DQN Features:

Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.

The LD-8 Body is weld-able

The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.

Granger Aerospace Products cargo containers are robust.

No aluminum body panels to patch.

No aluminum body frames to replace.

Lighter weight, less down time and lower repair costs equals lower cost of ownership.

Enhanced Threshold.

Fewer fasteners to replace.

Unique design allows for faster repairs.

Less spare parts to keep in stock.

Granger Aerospace Products offers alternative solutions for your ULD needs.

It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.

It’s our goal to offer more choices to our customers

Through or focus on technology and research, we are continually making improvements to our design.

Our customers save fuel by using robust as well as cost-efficient lightweight containers.

LD 8 Air Cargo Container Links

• LD 8 Air Cargo Conrtainers
• Granger Aerospace LD 8 Air Cargo Containers
• LD 8 Containers
• Rotationally Molded LD 8 Air Cargo Containers

LD 8 DQF / DQN Information

Click below to download LD 8 DQN Technical PDF
