Air Cargo Containers are common fixtures of business for nearly any commercial airline, air cargo company. Also known as a Unit Load Device, or ULD Container, the Air Cargo Containers are commonly used to load luggage, freight and mail on wide-body and specific narrow body aircraft. The containers allow for a large amount of cargo to be bundled into a single air cargo container, allowing for efficient and secure transportation. This allows for tremendous savings in ground crews time and effort, helping prevent delayed flights. Each Air Cargo Container or ULD Container has its own packing list or manifest so that its contents can be tracked to each destination.

Granger Plastics Company has been involved in the manufacturing of certified, airworthy, Air Cargo Containers and ULD containers for over 20 years. Granger's customers have benefitted from Granger's involvement in the aerospace industry, helping develop and innovate a number of aerospace and defense applications. Many of these Aerospace customers have benefitted from the rotational molding process, as the products and components produced are extremely durable and capable of standing up to rigourous environments. Granger's quality and expertise helped guide the decision for Granger to launch, Granger Aerospace, A Division of Granger Industries focused on providing Aerospace and Defense solutions. This decision allowed Granger Plastics to work diligently on obtaining it's highly lauded TSO C90d certification from the FAA.


Granger Aerospace has developed and is now offering the following Air Cargo Container types of ULD Containers:

LD 2 Air Cargo Containers

A timeless and traditional component of the Air Cargo industry is the LD 2 Containers, also known as DPE and DPN ULD's. The LD 2 Air Cargo Containers feature a single piece polymer shell, which offers a tremendous reduction of maintenance expense and down time, as the rotationally molded shells offer superior durability over antiquated technology, such as aluminum, polycarbonate and fiberglass. The single piece polymer shell is also available in a wide variety of colors, or even custom colors for easy identification and increased operations efficiency.

LD 2 DPE Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
LD 2 DPE Air Cargo Container
Granger Aerospace LD 2 DPE Air Cargo Container
  1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPE, LD 2 Forkliftable

  2. LD 2 DPE, LD 2, DPE Container, Granger Aerospace ld 2, Granger Plastics LD 2

  3. Granger Aerospace LD 2, LD 2, Granger LD 2 DPE

  4. LD 2 DPE Base, LD 2 DPE Air Cargo Container, LD 2, DPE Container, DPE Air Cargo, Granger Aerospace LD 2 DPE

  5. LD 2 AKN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2



LD 2 DPE Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-2/DPE
Spec.   AS 1677
Granger Aerospace P/N   GA2-0102-2
Base size 1534 mm x 1562 mm 60.4 in x 61.5 in
Height 1625 mm 64 in
Roof length 1562 mm 61.5 in
Max. gross weight 1224 kg 2700 lb
Internal volume 3.5 cu m 123 cu ft
External volume 3.65 cu m 129 cu ft
Door opening 1010 mm x 1480 mm 39.75 in. x 58.25 in
Tare weight from 72.1 kg 159 lb


LD 2 DPE Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF
LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPE dimensions


LD 2 DPE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 2 Air Cargo Container Links

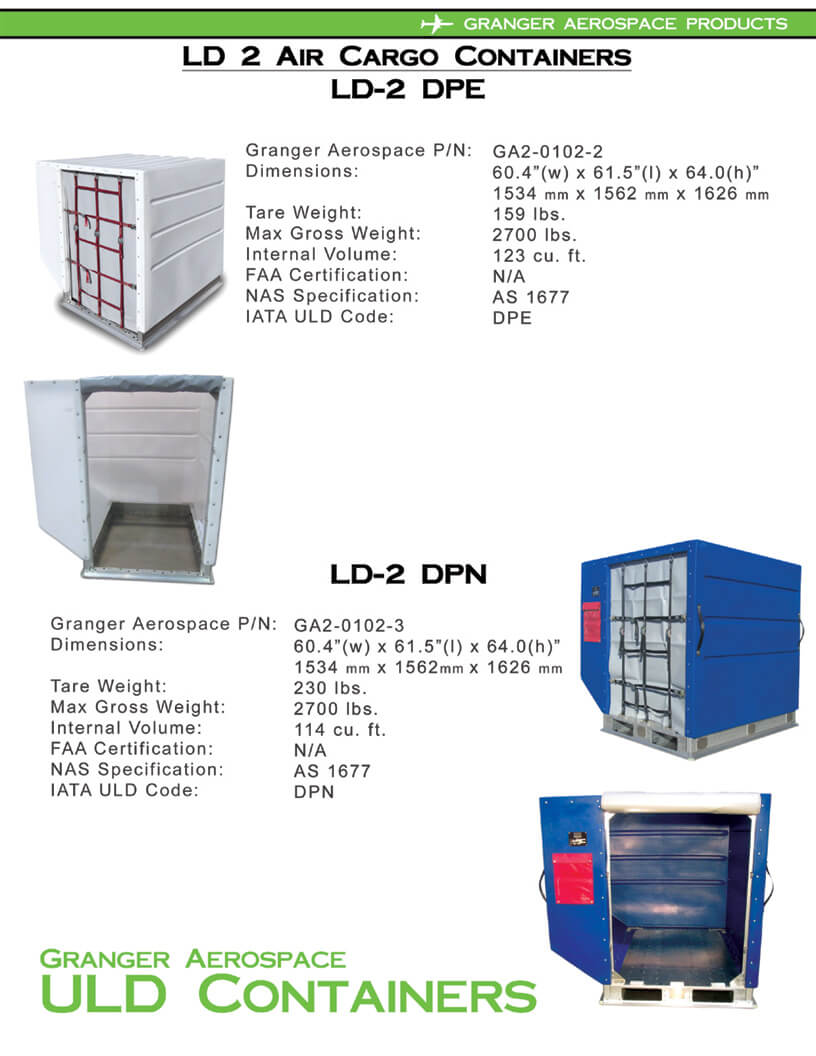

    LD 2 DPE / DPN Information

    Click below to download LD 2 DPE Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions



    LD 2 DPN Air Cargo Container

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
    LD 2 DPN Air Cargo Container
    Granger Aerospace LD 2 DPN Air Cargo Container
    1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPN, LD 2 Forkliftable

    2. LD 2 DPN, LD 2, DPN Container, Granger Aerospace ld 2, Granger Plastics LD 2

    3. Granger Aerospace LD 2, LD 2, Granger LD 2 AKN

    4. LD 2 DPN Base, LD 2 Air Cargo Container, LD 2, DPN Container, DPN Air Cargo, Granger Aerospace LD 2 Base

    5. LD 2 DPN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2

    LD 2 DPN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-2/DPN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 2 DPN Dimensional Drawings

    Click below to download LD 2 DPN Dimensional PDF
    LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPN dimensions

    LD 2 DPN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 2 Air Cargo Container Links


    LD 2 DPE / DPN Information

    Click below to download LD 2 DPN Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions

    LD 3 Air Cargo Containers

    LD 3 AKE Air Cargo Containers


    A high demand Air Cargo operation requires the highest of quality while providing the necessary features to operate a leading world class facility to provide express shipping. The LD 3 Air Cargo Container by Granger Aerospace offers not only innovative, leading features, lighter tare weights, while maintaining industry leading durability that is matched by no other ULD Container on the market. Granger's single piece polymer shell not only offers a tremendous savings in maintenance it also aides in operations efficiencies as it makes easy for identification in busy logistics terminals. The single piece polymer shell is available in custom colors to match your corporate identity or to be color coded in your operations hubs. All Granger Aerospace LD 3 containers are built under Granger's highly lauded TSO C90d authorization. Read below to learn more of how Granger Aerospace's containers can take your operations to the next level!

    LD 3 AKE Air Cargo Containers

    Click any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery.
    LD 3 AKE Air Cargo Container
    Granger Aerospace LD 3 AKE Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKE

    2. LD 3 AKE, LD 3, AKE Container, Granger Aerospace ld 3, Granger Plastics LD 3

    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKE

    4. LD 3 AKE Base, LD 3 Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 Base

    5. LD 3 AKE Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

    6. LD 3 Air Cargo Container, LD 3 ULD Container, Granger Aerospace LD 3 AKE

    LD 3 AKE Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKE
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 61.5 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 5.7 cu m 150 cu ft
    External volume 6.1 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 84.8 kg 187 lb

    LD 3 AKE Air Cargo Container Ultimate Load Test

    Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!

    LD 3 AKE Dimensional Drawings

    Click below to download LD 3 AKE Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKE dimensions

    LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 3 Air Cargo Container Links

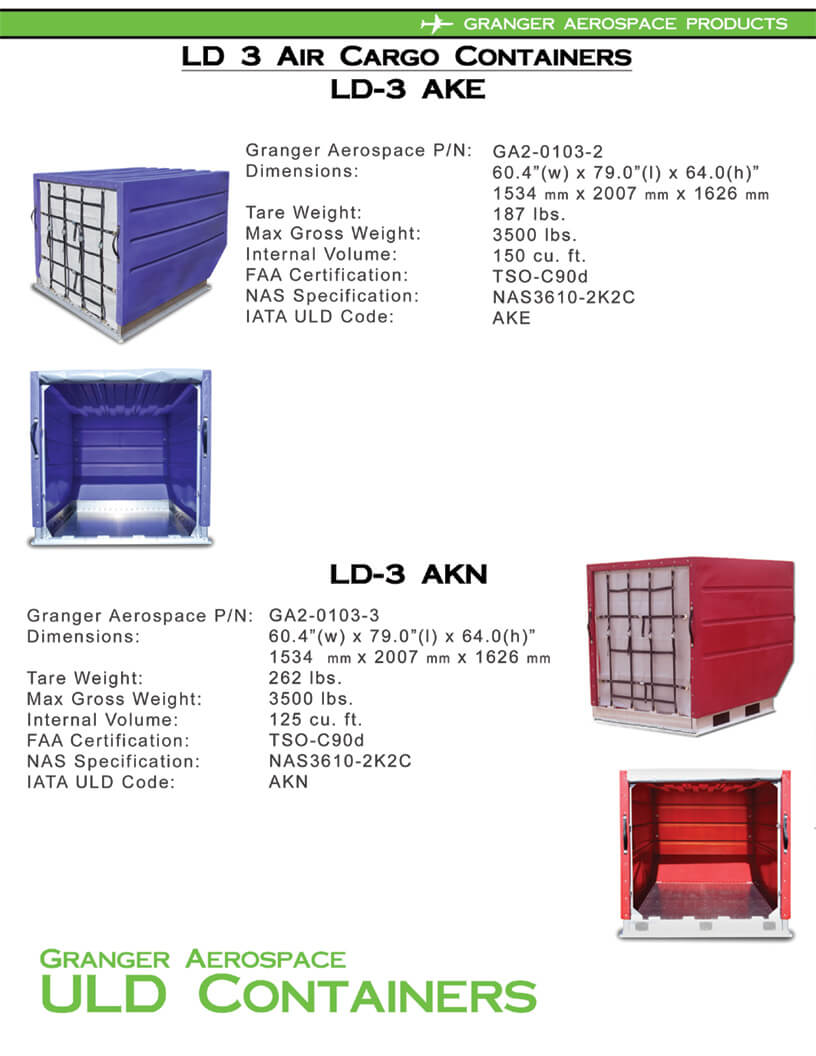

    LD 3 AKE / AKN Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKF dimensions

    LD 3 AKN Air Cargo Containers

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
    LD 3 AKE Air Cargo Container
    Granger Aerospace LD 3 AKN Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKN, LD 3 Forkliftable
    2. LD 3 AKN, LD 3, AKN Container, Granger Aerospace ld 3, Granger Plastics LD 3
    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKN
    4. LD 3 AKN Base, LD 3 Air Cargo Container, LD 3, AKN Container, AKN Air Cargo, Granger Aerospace LD 3 Base
    5. LD 3 AKN Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

    LD 3 AKN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 3 AKN Ultimate Load Test Video!

    See the forkliftable LD 3 AKN air cargo container successfully complete the FAA's Ultimate Load Testing in the video above!

    LD 3 AKN Side Load Test- 8 Days

    In typical fashion of Granger's commitment to quality and excellence, Granger decided to allow it's newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days. Coming soon, Granger Aerospace will video the repairs to this container, making it ready for the tarmac all over again!

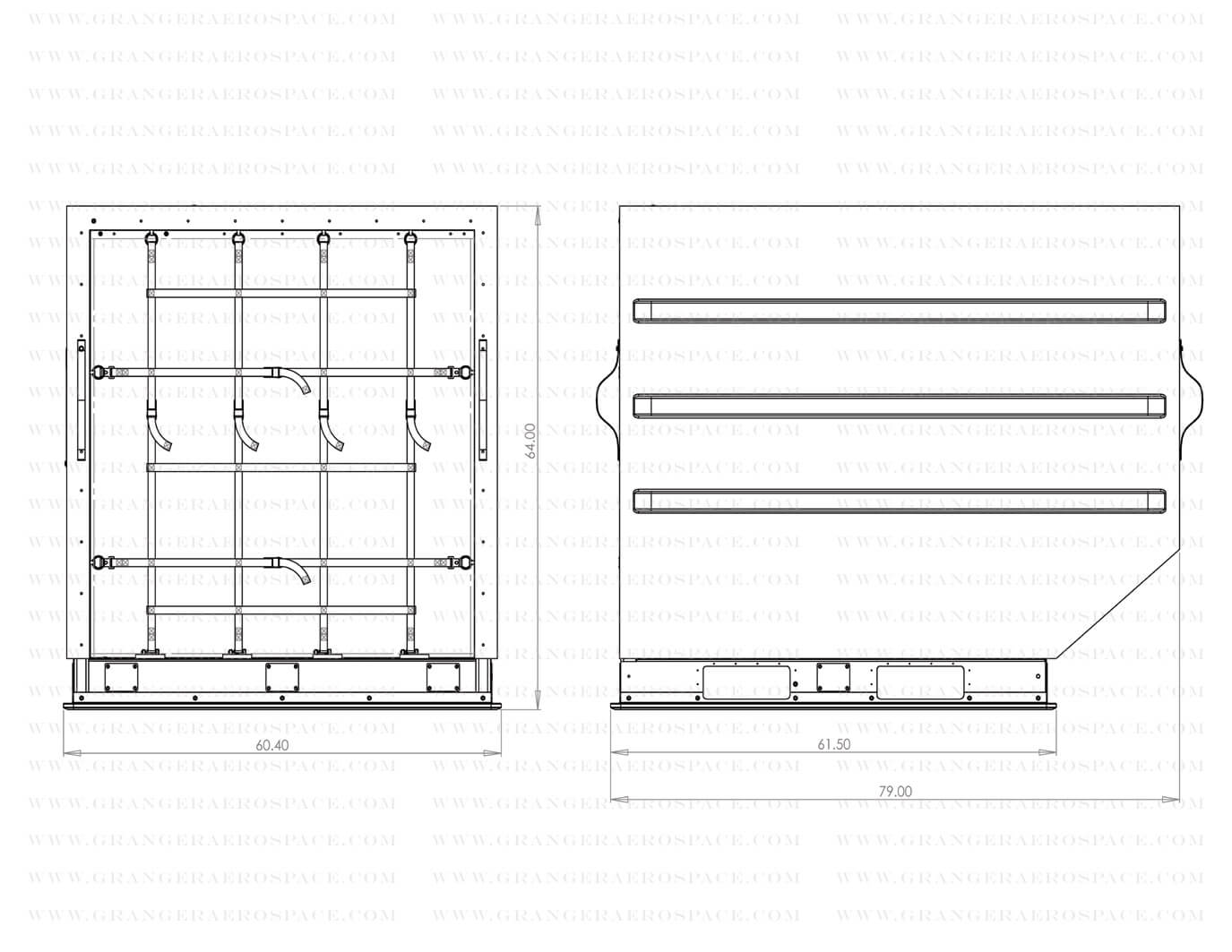

    LD 3 AKN Dimensional Drawings

    Click below to download LD 3 AKN Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKN dimensions

    LD 3 AKN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 3 Air Cargo Container Links


    LD 3 AKE / AKN Information

    Click below to download LD 3 AKN Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKN Dimensions, AKN dimensions

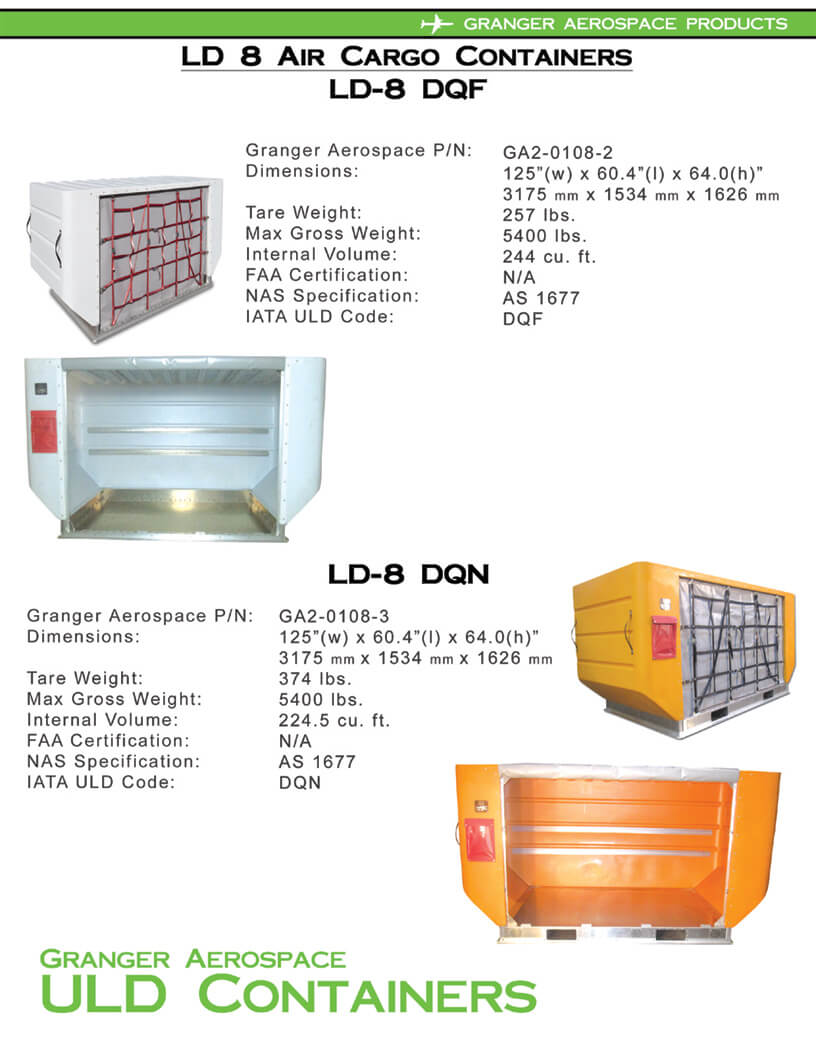

    LD 8 Air Cargo Containers

    The full width lower deck container which is a great fit for 767's, the LD 8 Air Cargo Container is a staple of the Air Freight and Air Cargo Container industry. Granger's single shell polymer construction on such a wide container offer tremendous maintenance savings in comparison to less innovative materials. The reduced number of fasteners greatly increase efficiency in operations and airworthiness inspections, which allow direct savings to impact bottom lines. Offered in both standard and forkliftable variants, the LD 8 Air Cargo Container is a very durable, robust container that provides highly quality solutions for industry leaders in air cargo and commercial airline operations.

    LD 8 DQF Air Cargo Containers

    Click any thumbnail image to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.
    Product gallery
    Granger Aerospace LD 8 DQN Air Cargo Container
    1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

    2. Interior Of LD 8, Granger Aerospace LD 8

    3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

    4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

    LD 8 DQF Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQF
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-2
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.9 cu m 244 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 116.5 kg 257 lb

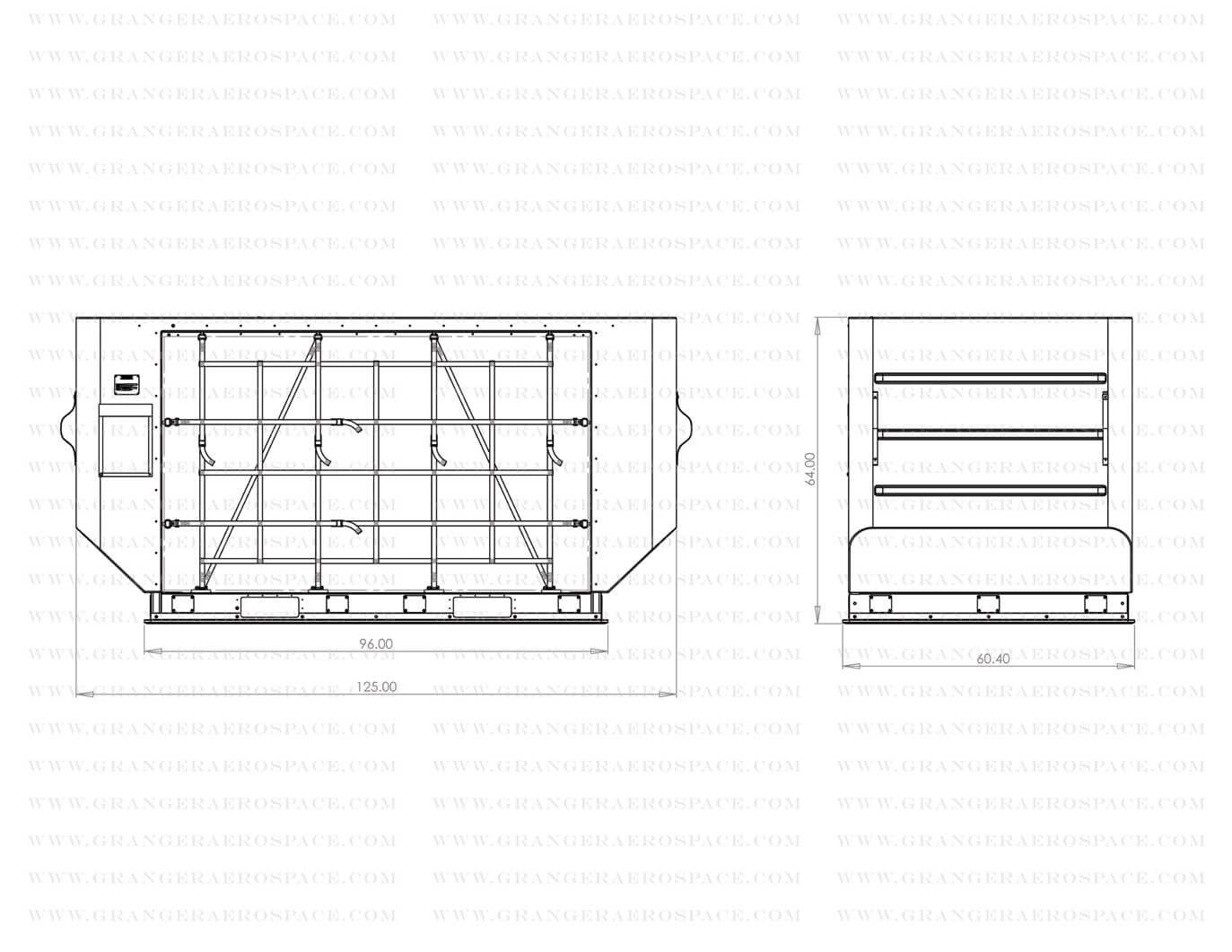

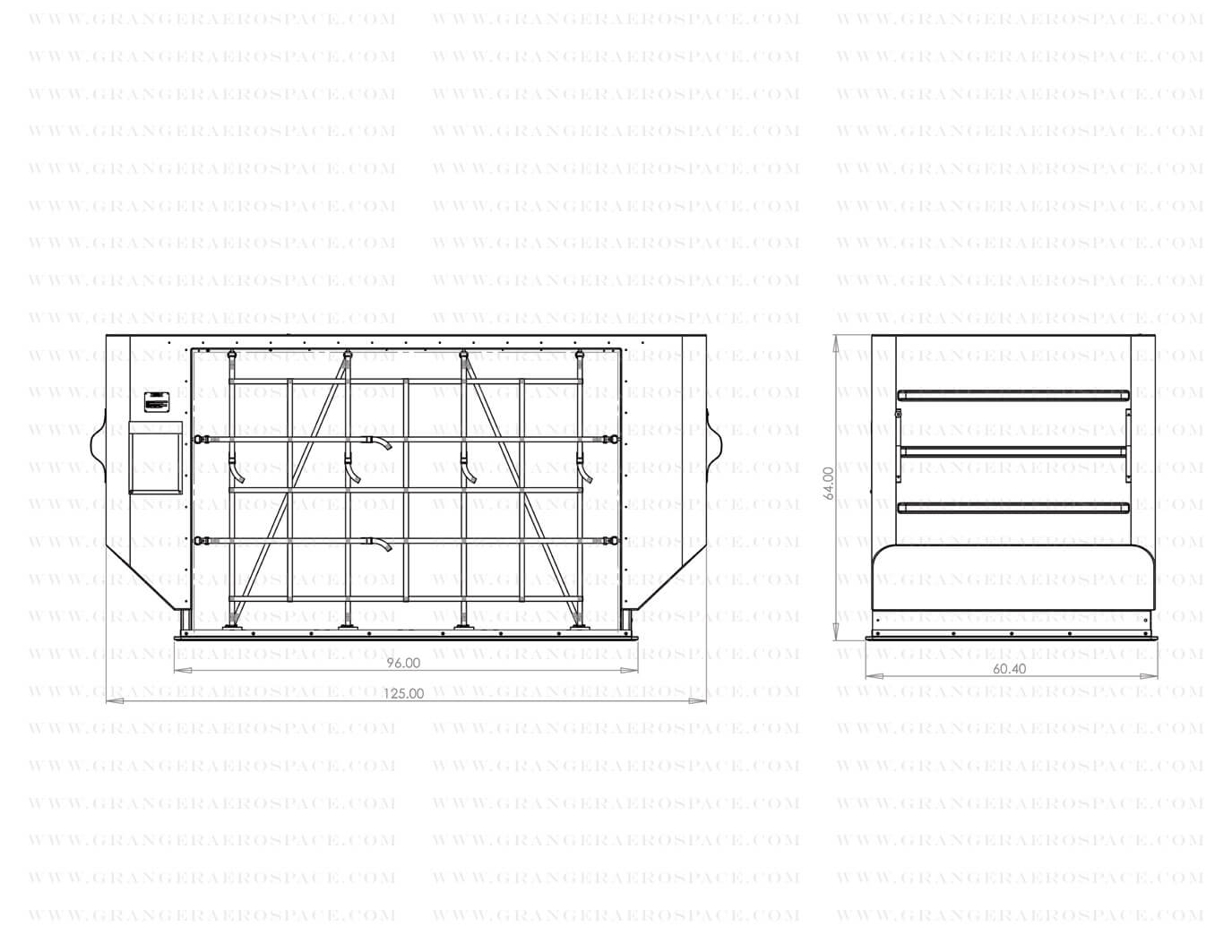

    LD 8 DQF Dimensional Drawings

    Click below to download LD 8 DQF Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQF dimensions

    LD 8 DQF Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 8 Air Cargo Container Links


    LD 8 DQF / DQN Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions

    LD 8 DQN Air Cargo Containers

    Product gallery
    Granger Aerospace LD 8 DQN Air Cargo Container
    1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

    2. Interior Of LD 8, Granger Aerospace LD 8

    3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

    4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

    LD 8 DQN Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQN
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-3
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.4 cu m 224.5 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 169.6 kg 374 lb

    LD 8 DQN Dimensional Drawings

    Click below to download LD 8 DQN Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQN dimensions

    LD 8 DQN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 8 Air Cargo Container Links


    LD 8 DQF / DQN Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions






    Request ULD Container Info

    Rotational Molding Info

    Rotational Molding Process, Rotational Molding Process Video, Rotomoulding Process, Rotational Moulding Process, Rotomolding Process Video, Plastics Rotational Molding Process Video
    The Rotational Molding Process.

    Featured Product Info

    LD 2 Air Cargo Container, DPE Containers, DPN Containers, LD 2 ULD Containers
    LD 2 ULD Containers

    Granger Aerospace

    Rotational Molding Aerospace, Aerospace Rotomolding Logo, Aerospace Rotational Moulding Logo, Aerospace Rotomoulding, Aerospace Plastics Rotational molding, Plastics Rotomoulding Aerospace, Granger Aerospace, Aerospace ULD Containers
    Custom Aerospace Rotational Molding Supplier.

    Granger Industries Links

    Granger Plastics on Twitter

    Granger Plastics on Facebook

    Granger Plastics Company

    Granger Plastics on LinkedIn

    Granger Plastics on YouTube

    Granger Plastics on Instagram
