LD 3 Air Cargo Containers

A high demand Air Cargo operation requires the highest of quality while providing the necessary features to operate a leading world class facility to provide express shipping. The LD 3 Air Cargo Container by Granger Aerospace offers not only innovative, leading features, lighter tare weights, while maintaining industry leading durability that is matched by no other ULD Container on the market. Granger's single piece polymer shell not only offers a tremendous savings in maintenance it also aides in operations efficiencies as it makes easy for identification in busy logistics terminals. The single piece polymer shell is available in custom colors to match your corporate identity or to be color coded in your operations hubs. All Granger Aerospace LD 3 containers are built under Granger's highly lauded TSO C90d authoriaztion. Read below to learn more of how Granger Aerospace's containers can take your operations to the next level!

LD 3 AKE Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery.
LD 3 AKE Air Cargo Container
Granger Aerospace LD 3 AKE Air Cargo Container
  1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKE, LD 3 Forkliftable

  2. LD 3 AKE, LD 3, AKE Container, Granger Aerospace ld 3, Granger Plastics LD 3

  3. Granger Aerospace LD 3, LD 3, Granger LD 2 AKE

  4. LD 3 AKE Base, LD 3 AKE Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 AKE

  5. LD 3 AKE base, LD 3 Air Cargo Container base, LD 3 Air Cargo Container, Granger Aerospace LD 3



LD 3 AKE Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-2/DPE
Spec.   AS 1677
Granger Aerospace P/N   GA2-0102-2
Base size 1534 mm x 1562 mm 60.4 in x 61.5 in
Height 1625 mm 64 in
Roof length 1562 mm 61.5 in
Max. gross weight 1224 kg 2700 lb
Internal volume 3.5 cu m 123 cu ft
External volume 3.65 cu m 129 cu ft
Door opening 1010 mm x 1480 mm 39.75 in. x 58.25 in
Tare weight from 72.1 kg 159 lb


Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!


LD 3 AKE Dimensional Drawings

Click below to download LD 3 AKE Dimensional PDF
LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKE dimensions, AKE ULD Container Dimensions


LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 3 Air Cargo Container Links



    LD 3 AKE / AKN Air Cargo Container Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKN dimensions



    LD 3 AKN Air Cargo Container

    Click on any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery.

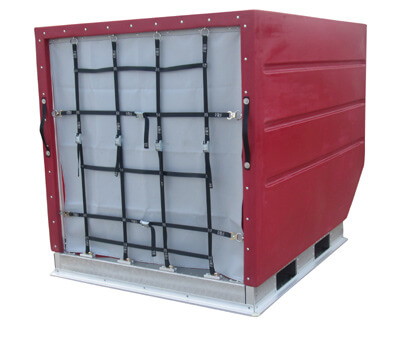

    LD 3 AKN Air Cargo Container
    Granger Aerospace LD 3 AKN Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKN, LD 3 Forkliftable

    2. LD 3 AKN, LD 3, AKN Container, Granger Aerospace ld 3, Granger Plastics LD 3

    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKN

    4. LD 3 AKN Base, LD 3 Air Cargo Container, LD 3, AKN Container, AKN Air Cargo, Granger Aerospace LD 3 Base

    5. LD 3 AKN Handle, LD 3 Air Cargo Container, LD 3 Air Cargo Container, Granger Aerospace LD 3

    6. LD 3 AKN Handle, LD 3 Air Cargo Container, LD 3 Air Cargo Container, Granger Aerospace LD 3

    LD 3 AKN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-2/DPN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 3 AKN Dimensional Drawings

    Click below to download LD 2 DPN Dimensional PDF
    LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPN dimensions

    LD 3 AKN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

    • LD 3 Air Cargo Container Links


    LD 3 AKE / AKN Air Cargo Container Information

    Click below to download LD 3 AKN Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKN dimensions
